Oil Water Separators

Compact size. Single use. Quick fit.

Only SEPURA gives you this performance from such a small package.

Our proprietary SILEXA™ filter medium gives SEP 60 the capacity to out-perform separators twice its size. And it’s pure simplicity to install and replace. Just fix the permanent back plate to a wall or compressor cabinet, insert two push-in quick fittings and it starts to protect you - and the environment.

Oily water in; clean water out. Discharge levels less than 5ppm.

At the end of its service life, simply remove the push fittings, attach the clip-on lid and plug (provided with the replacement unit) and slide it off the wall plate. Captured oil Is sealed inside the separator, which is now ready for transport and disposal.

More Info

Throughout thorough trials this patented media has been shown to be lighter, 20% more absorbent per weight and cleaner compared to other OEM products.

More About Silexa

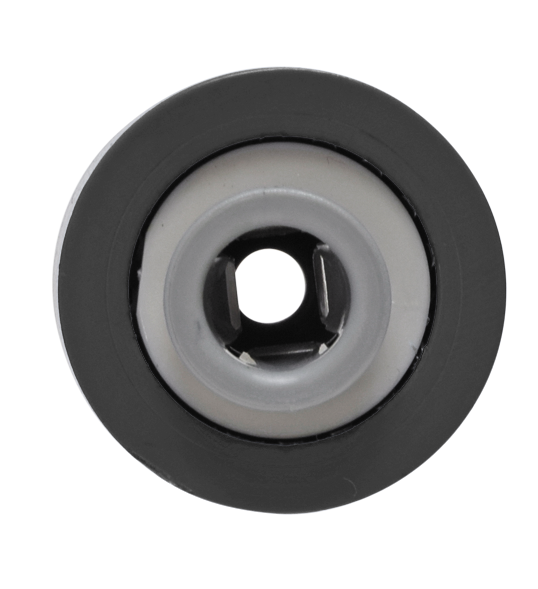

Inlet Sizes

The unit comes shipped with a 6mm inlet as standard.

1/4”
We can also supply a 1/4” inlet as an option. Please state when ordering if you would prefer this fitting.

Features and benefits

Compressor capacity up to 60cfm (1.7 m³/min) based on 80% duty.
Service life - 4000 operating hours at 60cfm or 8000 hours at 30cfm
(replace after a maximum of 2 years )***
Service period matched to normal compressor routine
Dimensions only 145mm x 145mm x 220mm
Wall or cabinet mounting (permanent ’quick-fit’ plate provided)
Push-in ‘quick’ connectors for speed and ease
Quickest and cleanest possible servicing routine
Clip-on cap and blanking plug seal the cleaner for transit
Filtration media is manufactured from recycled glass bottles
Lightweight and compact for international bulk shipping

* SEP60 is rated for use on compressor systems using mineral or mineral-based lubricants.
Contact SEPURA regarding PAG lubricants, but in any case de-rate by at least 50%.

** It is the user’s responsibility to verify discharge allowances in their region

*** Assumes compressor oil carry-over is no more than 5mg/m³
